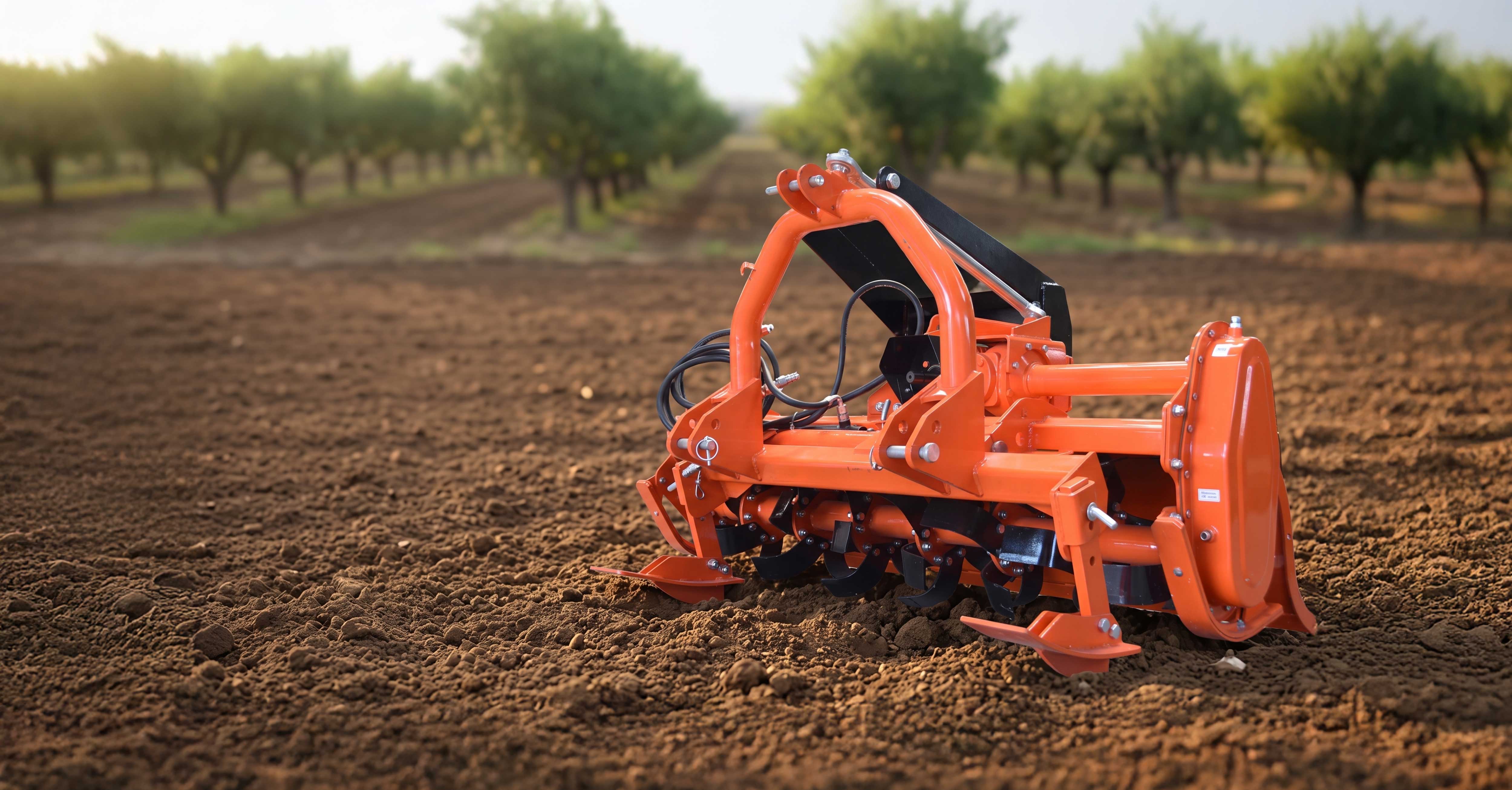

The Btown Side Shift (Orchard) Rotary Tiller is specially designed for orchard and vineyard operations, allowing easy tillage close to trees and boundaries. Its side-shifting feature ensures efficient soil preparation in tight spaces.
No features found
| MODEL | Unit | LFRTK165 | LFRTK185 | LFRTK205 |
| Gear Box | Multi Speed | |||
| Side Transmission | Gear Drive | |||
| Length | mm | 1150 | ||
| Width | mm | 1785 | 2035 | 2285 |
| Height | mm | 1250 | ||
| Working Width | mm | 1600 | 1850 | 2100 |
| Working Depth | mm | UP TO 150 | ||
| Depth Control | Skid Fitted as per standard equipment | |||
| PTO Speed | rpm | 540/1000 | ||
| Rotor Speed | rpm | 180-240 | ||
| Number of Blades | No. | 36 | 42 | 48 |
| Type of Blades | C-Type | |||
| Hitch Category | CAT-II | |||
| PTO Safety Device | Shear Bold Type | |||
| CE Guard Protection | Provided | |||
| Min. Tractor (HP Required) | hp | 45-60 | ||
| Weight w/o PTO (Approx) | kg | 490 | 530 | 560 |
