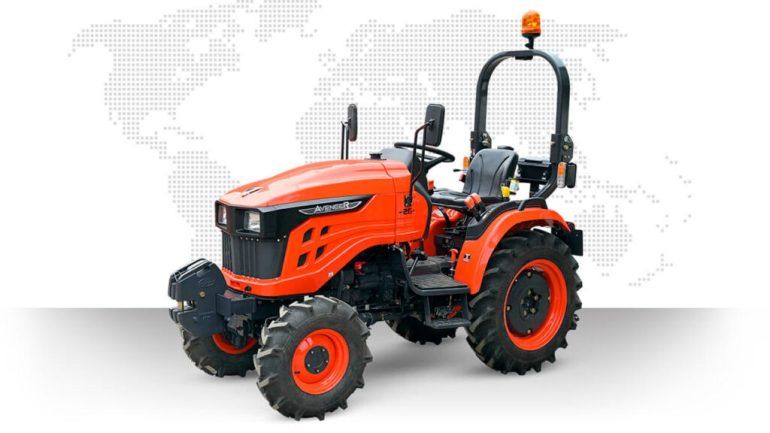

AVENGER 26 HP Turf
The new generation AVENGER Tractor naturally aspirated and Powerful Engines are synonymous with High Performance.
View BrochureHome / Tractors / AVENGER 26 HP Turf
The new generation AVENGER Tractor naturally aspirated and Powerful Engines are synonymous with High Performance.
View BrochureAvenger 26 is capable of exciting performances. 26-HP model meets the Euro III Emission Standards. Daily maintenance and Service Checks are facilitated by the new frontal opening hood.
The AVENGER 26 HP Turf Tractor is ideal for maintaining large estates, gardens, landscaped grounds, and private properties.
Show More
The AVENGER 26 HP Turf Tractor is a practical choice for horticultural applications such as nursery maintenance, soil preparation, material handling, and landscaping.
Show More
The AVENGER 26 HP Turf Tractor is well suited for maintaining large lawns and expansive turf areas. Its powerful performance, compact design, and loader configuration make it useful for moving soil, mulch, debris, and other materials.
Show More
The AVENGER 26 HP Turf Tractor is well suited for turf maintenance tasks such as moving soil, spreading mulch, clearing debris, and maintaining landscaped areas.
Show More| Engine Specifications | ENGINE Model / Make MVL3E / MHI | HP Category: 26 | Type: 4 Cycle, Vertical Overhead Valve, Cylinder in Line, Swirl Chamber Type | No. of Cylinders: 3 Cylinders | Bore / Stroke (mm): 78 / 92 | Rated Engine (RPM): 2500 | Displacement (CC): 1319 | Fuel Pump: In-Line Type | (ND-PFR M Type) | Air Cleaner Type: Dry with Clogging Sensor | |
| Clutch | Type: Heavy Duty Dry Type Single | Plate Size: Dia 224 mm | |||||||||
| Transmission | Gear Box: 9F + 3R Constant Mesh | ||||||||||
| Road Speed Km/Hr | FORWARD (High, Medium and Low) | – Gear 1: 9.19 – 4.64 – 1.46 | – Gear 2: 12.98 – 6.55 – 2.06 | – Gear 3: 21.35 – 10.78 – 3.39 | REVERSE Gear: 10.63 – 5.36 – 1.69 | ||||||
| Hydraulic System | Type: Open Center, ADDC | Hydraulic Pump: Gear Type | Linkage: TPL Category-N | Lifting Capacity (Kg.): 750 | |||||||
| Steering | Type: Power Steering | ||||||||||
| Power Take Off | Type: 2 Speed | Splines: 6 | P.T.O Speed: 540 @ 2500, 540 E @ 2035 | ||||||||
| Capacities (Litres) | Fuel Tank: 25 | Engine Sump: 3.7 | Cooling System: 5.8 | Transmission & Hydraulic: 18±10% | |||||||
| Electrical Installation | Battery: 12V, 65 Ah | Alternator: 12V, 65A | Starter Motor: 12V, 1.7 KW | ||||||||
| Minimum Turning Radius | Without Breaks (m): 2,6 | ||||||||||
| Tyre Size 4WD | Front: 6.00 – 12 | Rear: 8.3 – 20 | Weight (Kg.): 1130Cell | ||||||||
| Front Drive Axle for 4WD Only | Differential | Total Ratio: 1:13.81 | Oil Capacity (Ltr.): 3.2 Ltr. | ||||||||
| Brakes | Type: Multi Disc, Oil Immersed | ||||||||||
| Dimensions | Overall Length: 2860 mm | Width: 1120 mm | Height: 2570 mm | Ground Clearance: 293 mm | Wheel Base: 1542 mm | Front Track: 860 mm | Rear Track: 820 mm |
