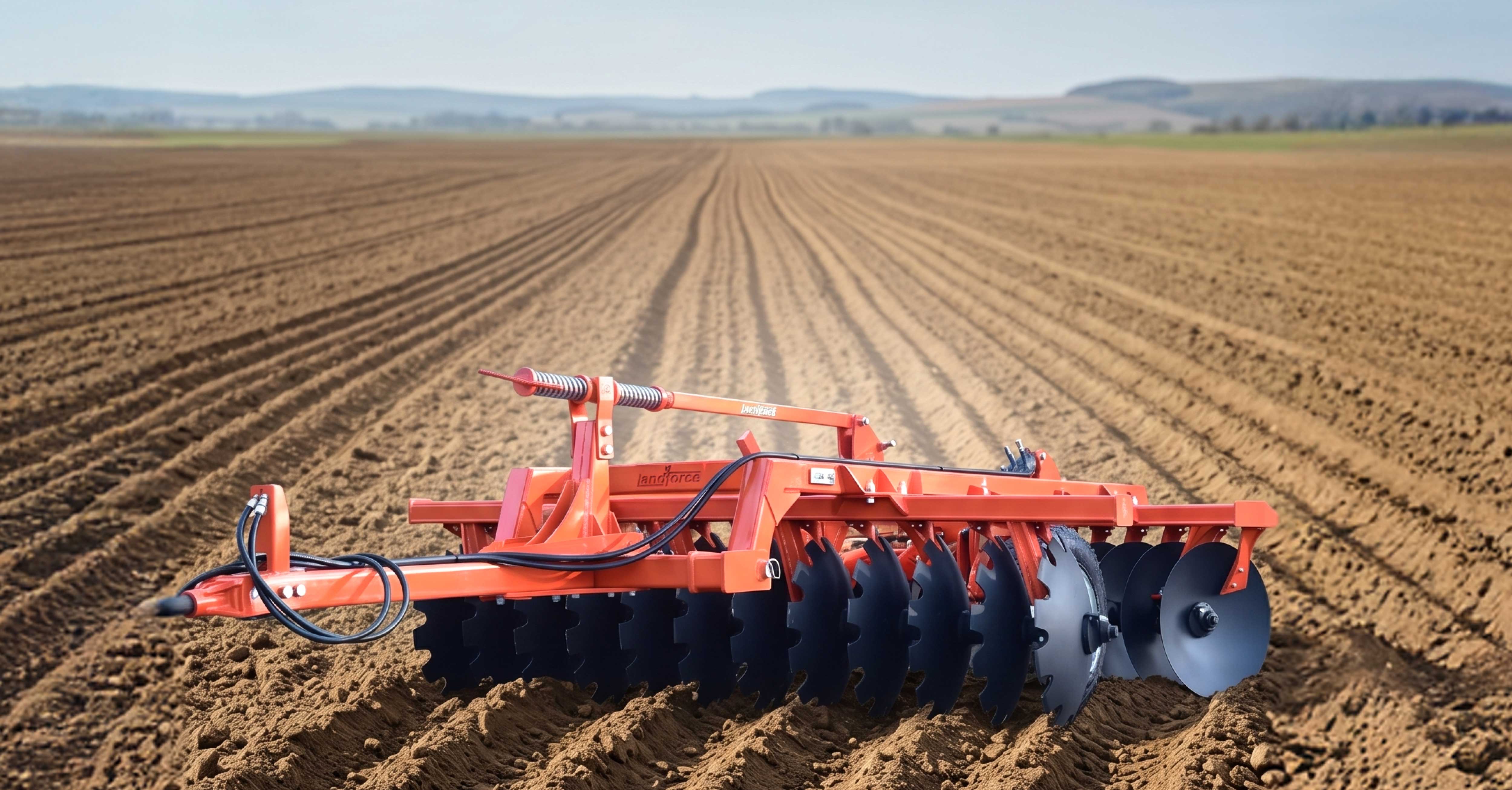

The Btown Disc Harrow Hydraulic Heavy is built for powerful performance in hard and dry soils. Its robust frame, heavy discs, and hydraulic control ensure deep tillage, smooth operation, and maximum field efficiency.
Durable powder coating resists rust, scratches, and harsh weather for long-lasting protection.
Show More
Secure towing connection for stable attachment and reliable implement handling.
Show More
Ensures efficient cutting, proper soil mixing, and a smooth, uniform field finish.
Show More
Suitable for 65–130 HP tractors, delivering strong and efficient performance for medium-duty hydraulic disc harrow operations.
Show More| MODEL | Unit | LFDHHH18 | LFDHHH20 | LFDHHH22 | LFDHHH24 | LFDHHH28 | LFDHHH30 |
| Frame | SQ. PIPE 110x110x8mm | ||||||
| Gang Axle | mm | 40 mm (Solid Rod) | |||||
| No. of Discs | No. | 18 | 20 | 22 | 24 | 28 | 30 |
| Type of Disc | Boron Steel, Notched Discs on Front & Plain Discs on Rear | ||||||
| Disc Size | mm | 660x6 | |||||
| Gang Adjustment | 3 Positions available on both front & rear gangs | ||||||
| Working Width | mm | 2100 | 2300 | 2500 | 2780 | 3180 | 3480 |
| Disc Spacing | mm | 228 | |||||
| No. of Bearing Hubs | No. | 8 | 8 | 8 | 8 | 8 | 10 |
| Tyre Size | 10.00/75-15.3 | ||||||
| Hitch Category | CAT-II | ||||||
| Tractor HP Req. | hp | 75-90 | 90-130 | 140-165 | 150-180 | ||
| Weight | kg | 1830 | 1910 | 1960 | 1990 | 2190 | 2630 |
