AVENGER 26 HP Industrial
The new generation AVENGER Tractor naturally aspirated and Powerful Engines are synonymous with High Performance.
View BrochureHome / Tractors / AVENGER 26 HP Industrial
The new generation AVENGER Tractor naturally aspirated and Powerful Engines are synonymous with High Performance.
View BrochureAvenger 26 is capable of exciting performances. 26-HP model meets the Euro III Emission Standards. Daily maintenance and Service Checks are facilitated by the new frontal opening hood.
Power steering provides smooth and effortless steering control, making the tractor easier to maneuver during fieldwork, landscaping, and other utility applications.
Show More

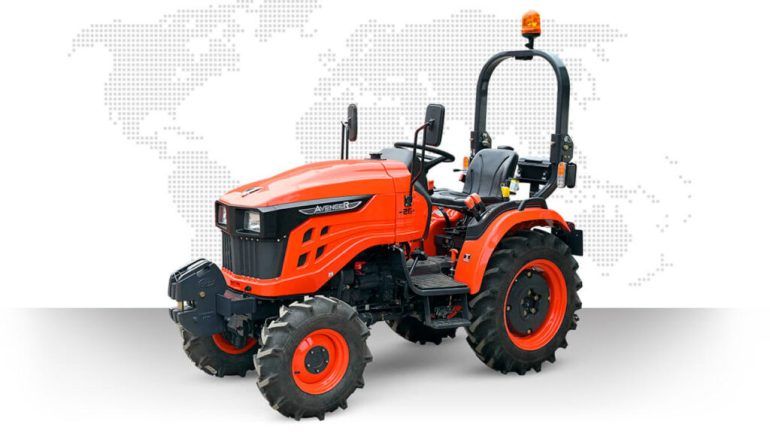

The compact construction makes the tractor easy to operate and maneuver in tight spaces, narrow pathways, small fields, and landscaping areas.
Show More
Oil-immersed multi-disc brakes deliver smooth, dependable braking performance and enhanced control during operation. The oil-cooled design helps reduce heat and wear, supporting consistent braking performance even during extended or demanding work.
Show More
The 750 kg hydraulic lifting capacity provides reliable and efficient performance for handling a wide range of agricultural, landscaping, and utility implements.
Show More| Engine Specifications | ENGINE Model / Make MVL3E / MHI | HP Category: 26 | Type: 4 Cycle, Vertical Overhead Valve, Cylinder in Line, Swirl Chamber Type | No. of Cylinders: 3 Cylinders | Bore / Stroke (mm): 78 / 92 | Rated Engine (RPM): 2500 | Displacement (CC): 1319 | Fuel Pump: In-Line Type | (ND-PFR M Type) | Air Cleaner Type: Dry with Clogging Sensor | |
| Clutch | Type: Heavy Duty Dry Type Single | Plate Size: Dia 224 mm | |||||||||
| Transmission | Gear Box: 9F + 3R Constant Mesh | ||||||||||
| Road Speed Km/Hr | FORWARD (High, Medium and Low) | – Gear 1: 9.19 – 4.64 – 1.46 | – Gear 2: 12.98 – 6.55 – 2.06 | – Gear 3: 21.35 – 10.78 – 3.39 | REVERSE Gear: 10.63 – 5.36 – 1.69 | ||||||
| Hydraulic System | Type: Open Center, ADDC | Hydraulic Pump: Gear Type | Linkage: TPL Category-N | Lifting Capacity (Kg.): 750 | |||||||
| Steering | Type: Power Steering | ||||||||||
| Power Take Off | Type: 2 Speed | Splines: 6 | P.T.O Speed: 540 @ 2500, 540 E @ 2035 | ||||||||
| Capacities (Litres) | Fuel Tank: 25 | Engine Sump: 3.7 | Cooling System: 5.8 | Transmission & Hydraulic: 18±10% | |||||||
| Electrical Installation | Battery: 12V, 65 Ah | Alternator: 12V, 65A | Starter Motor: 12V, 1.7 KW | ||||||||
| Minimum Turning Radius | Without Breaks (m): 2,6 | ||||||||||
| Tyre Size 4WD | Front: 6.00 – 12 | Rear: 8.3 – 20 | Weight (Kg.): 1130Cell | ||||||||
| Front Drive Axle for 4WD Only | Differential | Total Ratio: 1:13.81 | Oil Capacity (Ltr.): 3.2 Ltr. | ||||||||
| Brakes | Type: Multi Disc, Oil Immersed | ||||||||||
| Dimensions | Overall Length: 2860 mm | Width: 1120 mm | Height: 2570 mm | Ground Clearance: 293 mm | Wheel Base: 1542 mm | Front Track: 860 mm | Rear Track: 820 mm |
